Parition Wall 150kg | 移動隔斷墻 150kg

• Modular system
• Trolley with two-point guide
• Progressively adjustable height + 6 /- 3 mm (+ / )
• Extremely light and smooth cornering
• Minimum axis radius 4000 mm (13'1 )
• Maximum sliding door weight 150 kg (330 lbs.)
• Secure locking
• Small space requirement in stacking area

Hardware system of modular design for stackable wooden partitions up to 100 and 150 kg (220 and 330 lbs.) per panel.

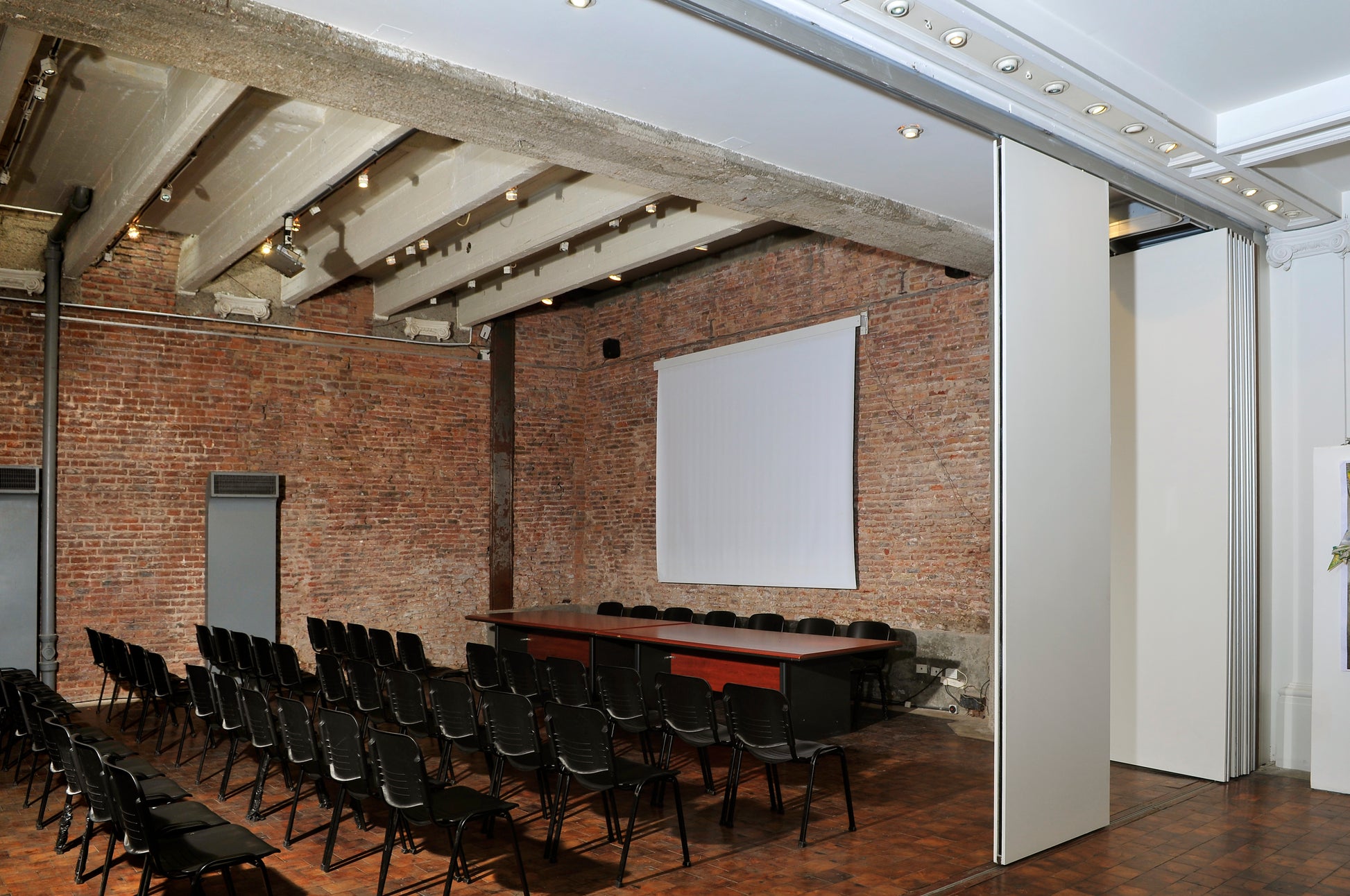

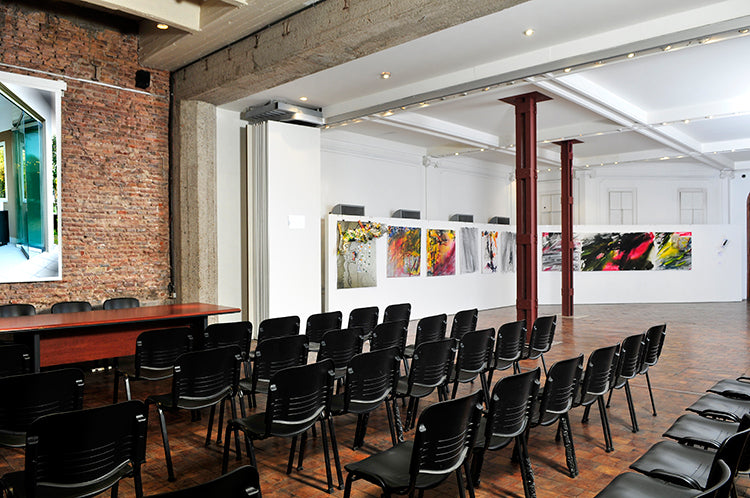

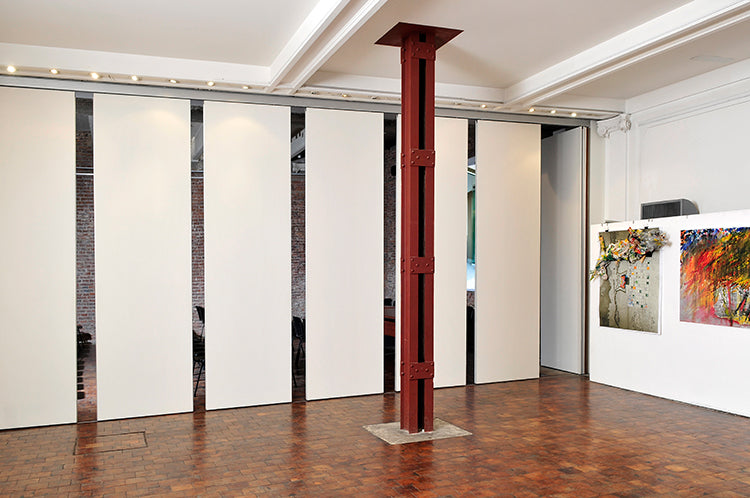

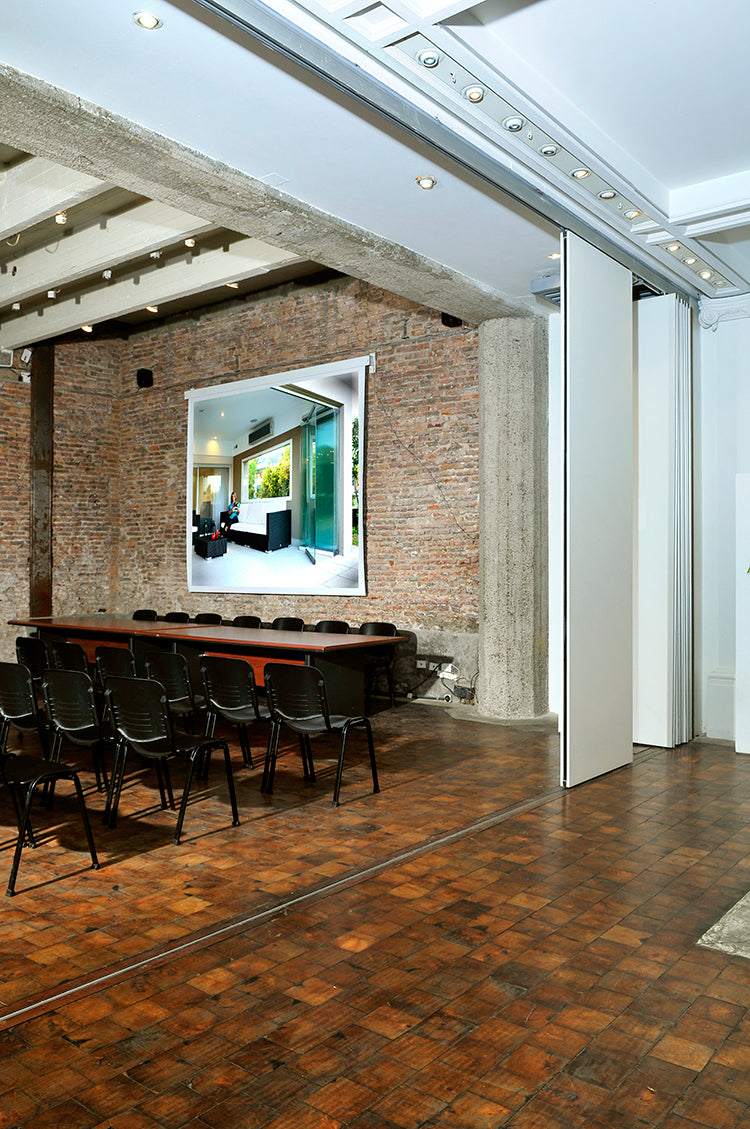

Hawa Variotec 150 enables the quick realization of all design concepts for room partitions. This hardware system allows straight running tracks / bottom guide channels and curved segments of 15, 30, 45, 60, 75 and 90 degrees to be combined to form customized configurations. Different trolleys are required depending on the door weight (100 or 150 kg / 220 or 330 lbs.).

Test certificates ot the Landesgewerbeanstalt Bayern (LGA) in Nuremberg confirm the hardware system‘s high functionality and resistance to wear.

In principle, a version without bottom guide channels is possible. However, we recommend using them since this makes opening and closing the partitions more convenient.
