CEAM 1431SC Self-Closing 3D Adjustable Concealed Door Hinge | 自動閉門三維可調式隱藏鉸鏈

Strong, silent, invisible. 100% made in Italy.

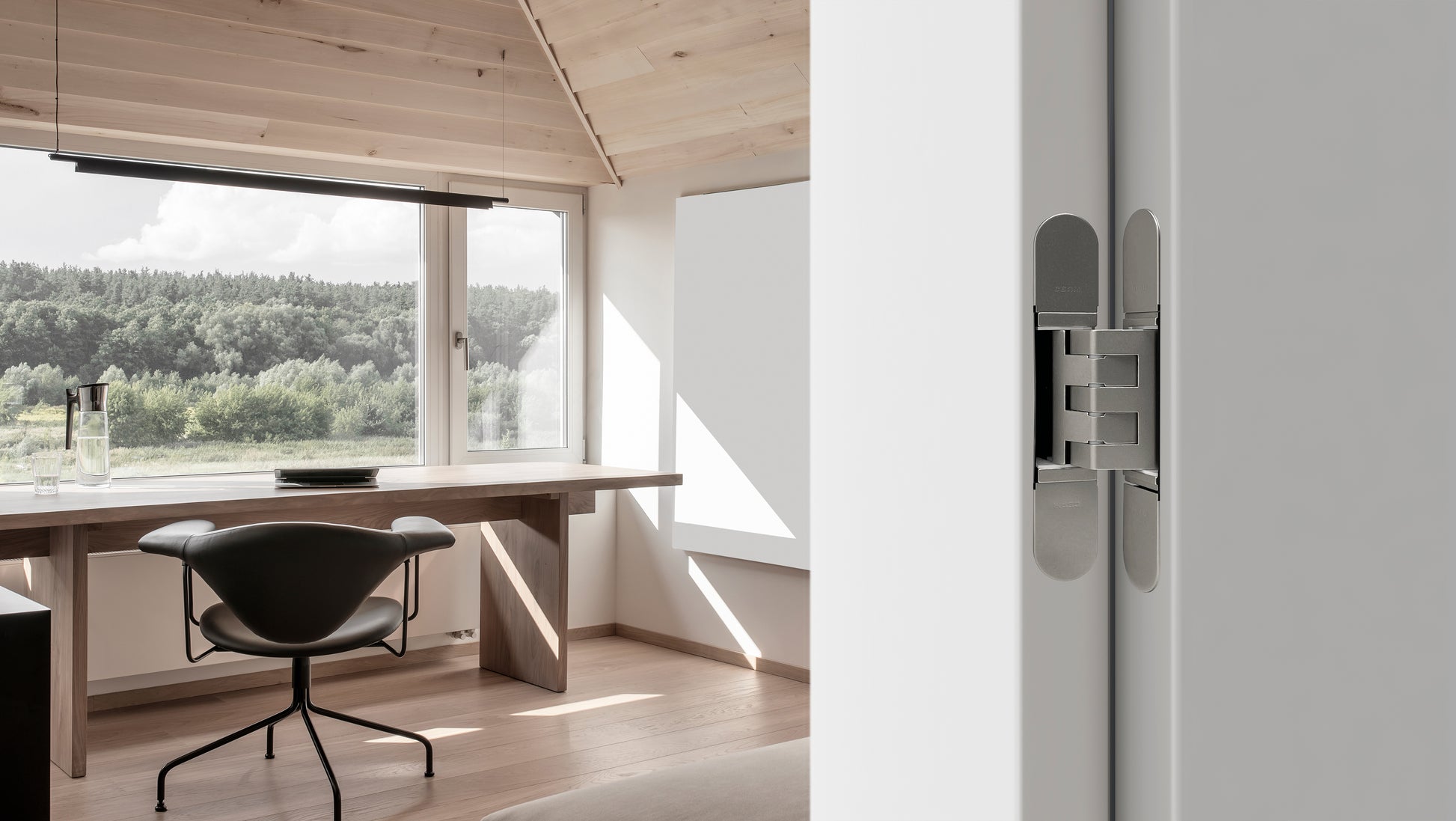

The 1431SC is a patented self-closing concealed hinge for doors up to 100 kg. Fully hidden when the door is shut, it combines the 3D adjustability of the 1431 range with an integrated, adjustable closing mechanism — removing the need for a surface-mounted door closer.

1431SC 為已獲專利的自動閉門隱藏式鉸鏈，適用於重達 100 公斤的門扇。閉門時完全隱藏，兼具 1431 系列的三維可調功能及內置可調閉門機構，無需另外安裝明裝閉門器。

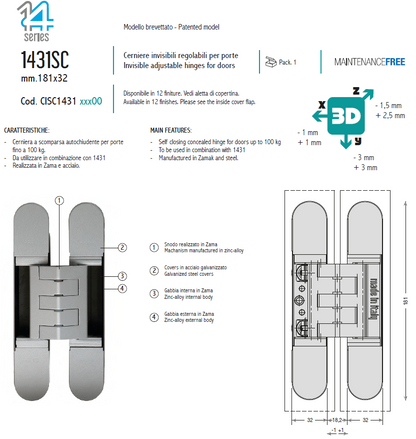

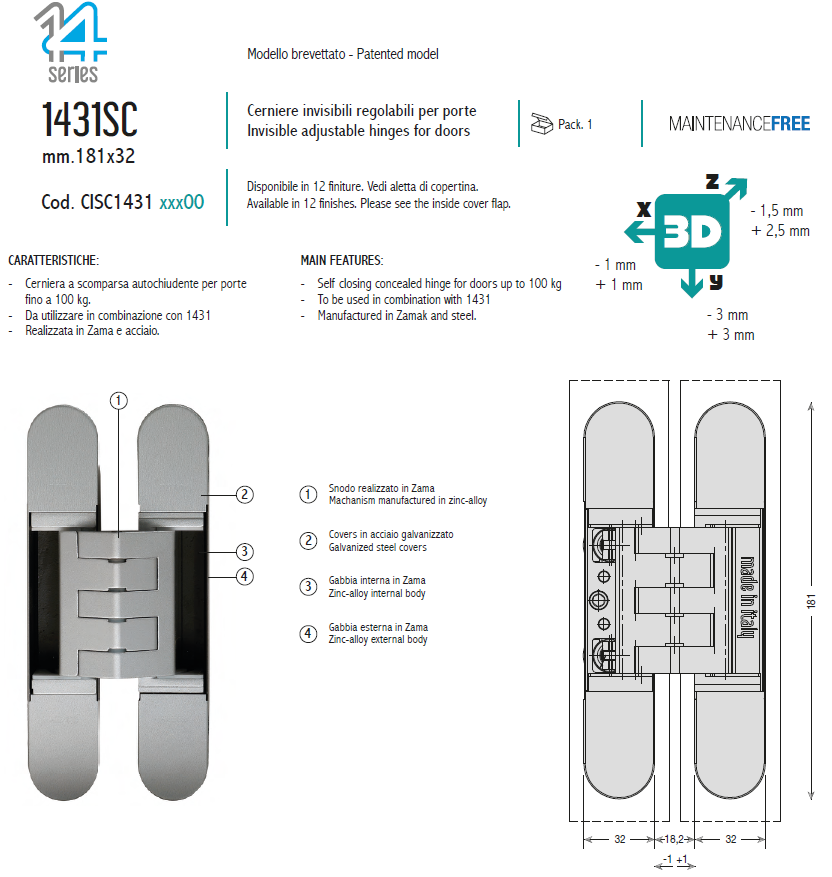

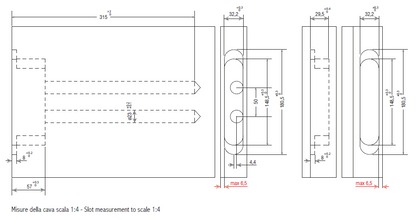

Technical Specifications | 技術規格

Model | 型號	1431SC

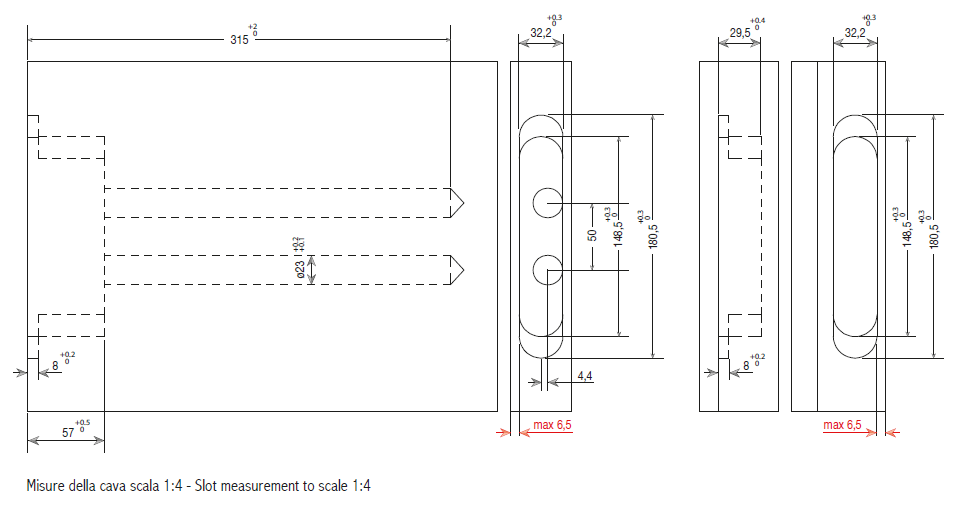

Size | 尺寸	181 × 32 mm
Height | 高度	180.5 mm
Width | 闊度	32.2 mm
Depth | 深度	29.5 mm

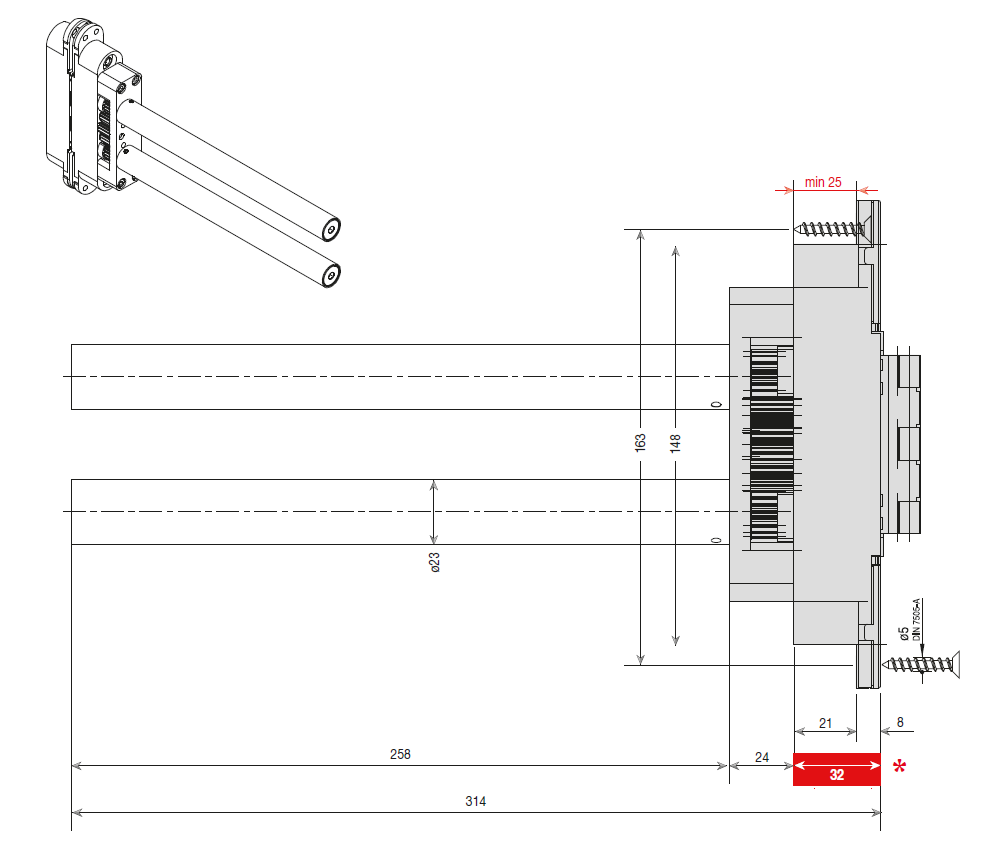

Cup diameter | 杯孔直徑	ø23 mm

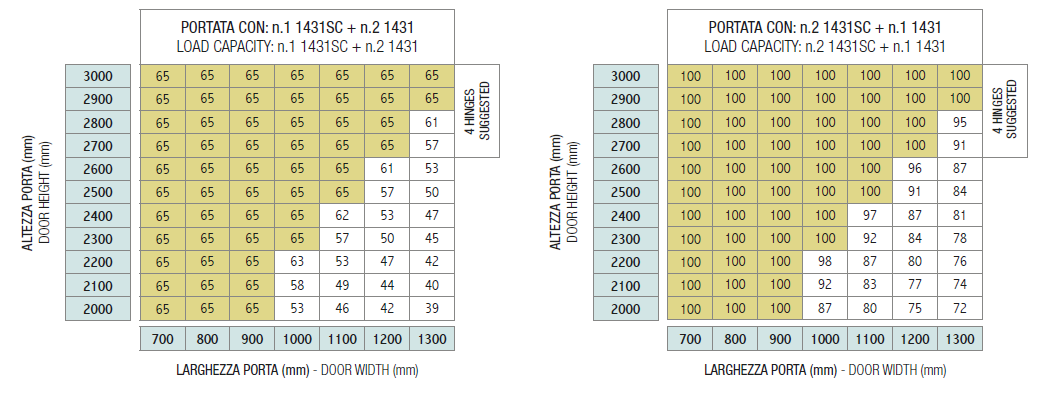

Load capacity | 承重	Up to 100 kg | 最高 100 公斤
Material | 物料	Zamak and steel | 鋅合金及鋼
Patent | 專利	Patented model | 專利型號
Packing | 包裝	1 pc | 每個
Origin | 產地	Italy | 意大利

3D Adjustment | 三維調校

Lateral (x) | 橫向	− 1.5 mm / + 2.5 mm
Height (y) | 高度	− 3 mm / + 3 mm
Depth (z) | 深度	− 1 mm / + 1 mm

Closing Force Adjustment | 閉門力度調校

The hinge is supplied unloaded for safer, easier installation. Adjust after installation by rotating the adjustment gear anticlockwise with the Allen key supplied.

• Opening 0°–180°: maximum 20 complete rotations
• Opening 0°–90°: maximum 30 complete rotations

鉸鏈出廠時未加載彈簧力，以便安裝更安全簡易。安裝後以隨附六角匙逆時針旋轉調節齒輪即可調校閉門力度。開啟 0°–180°：最多 20 圈；開啟 0°–90°：最多 30 圈。

Installation | 安裝步驟

1. Insert the hinge into the frame side | 將鉸鏈殼體嵌入門框側預留位置
2. Tighten the fixing screws on the frame side | 以固定螺絲鎖緊門框側
3. Insert the door into the relative hinges | 將門扇裝上鉸鏈
4. Tighten the fixing screws on the door side | 以固定螺絲鎖緊門扇側
5. Adjust the closing speed using the Allen key provided | 以隨附六角匙調校閉門速度

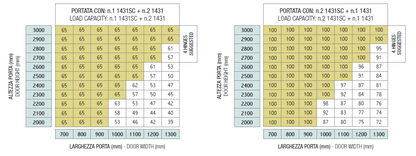

Important | 注意： The 1431SC is designed to be used in combination with standard 1431 hinges. | 1431SC 須配合標準 1431 鉸鏈一併使用。

For special door sizes and use of door closer devices, please read the manufacturer's technical guidelines carefully. | 如需配合特殊門扇尺寸或使用閉門器，請詳細參閱生產商技術指引。

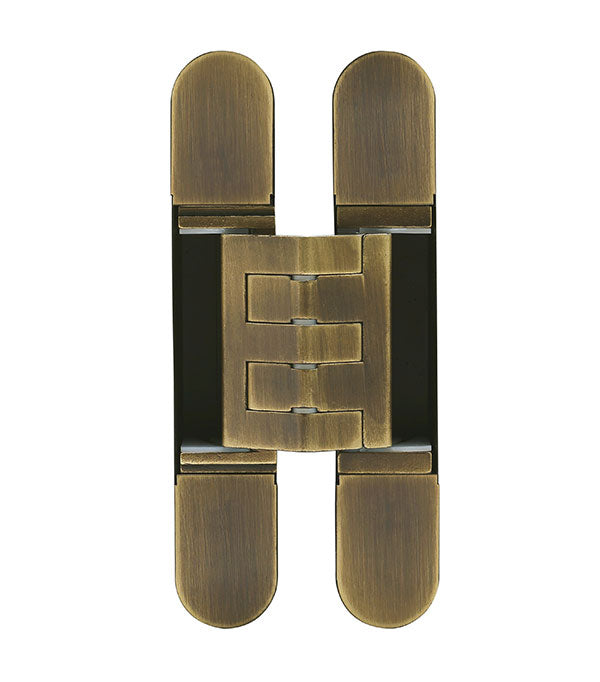

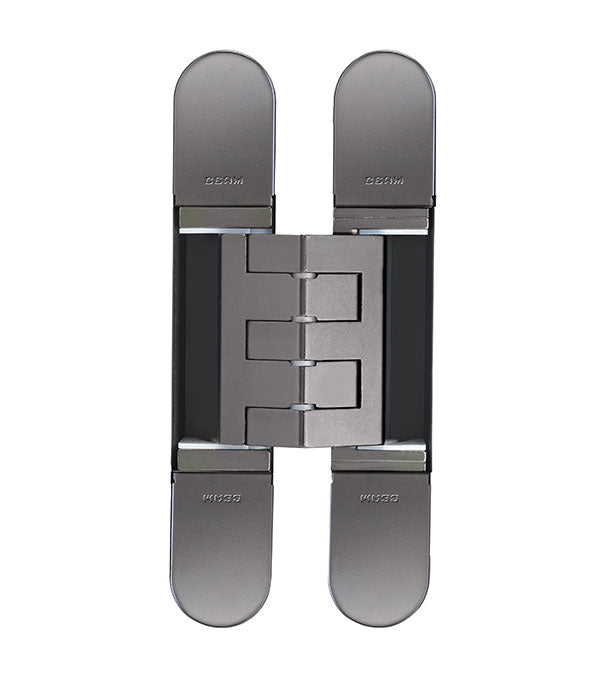

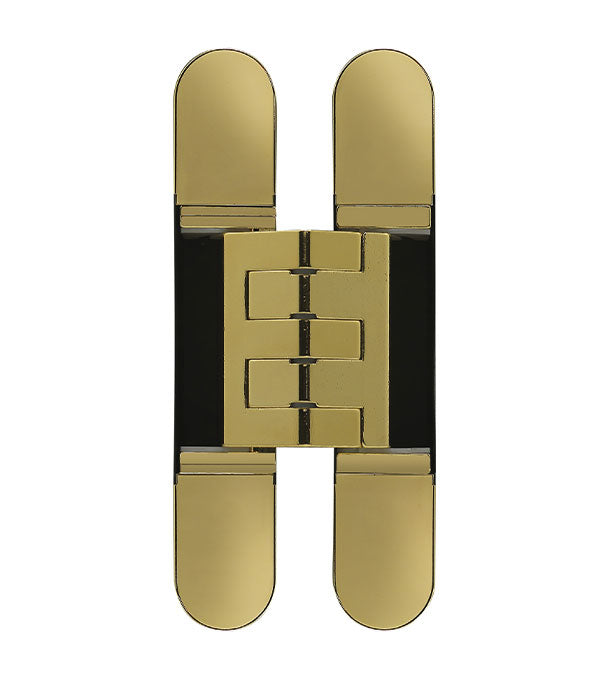

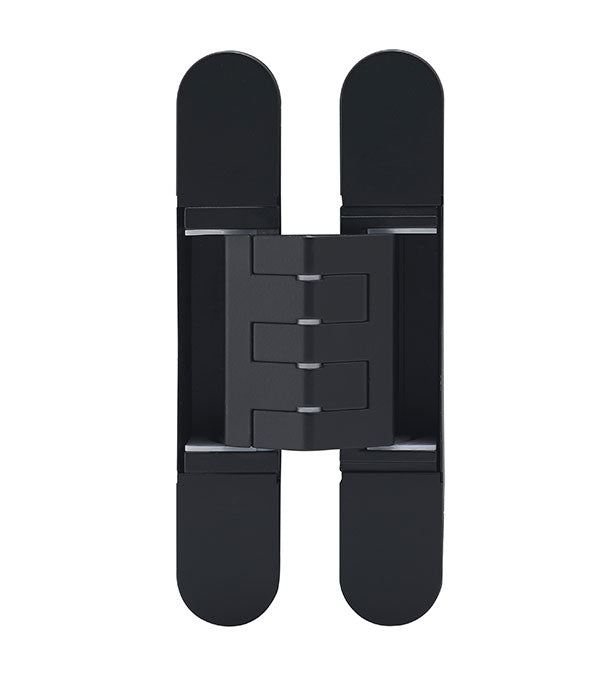

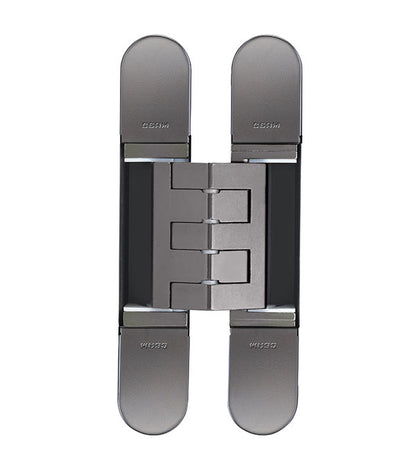

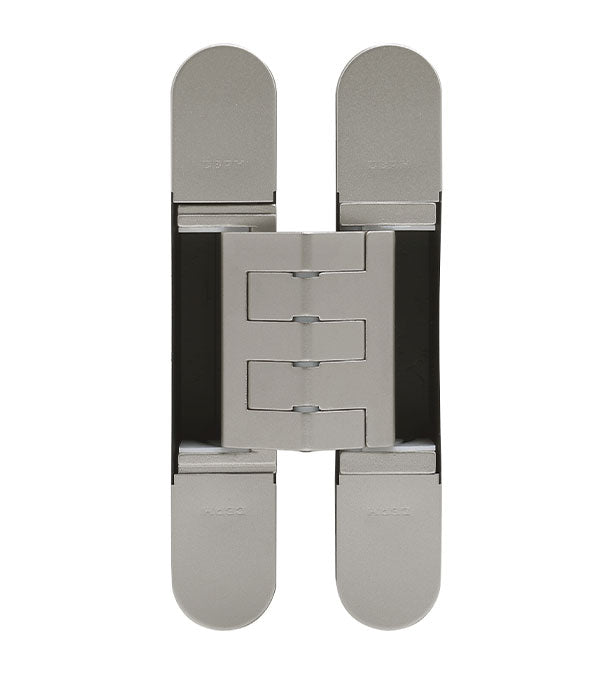

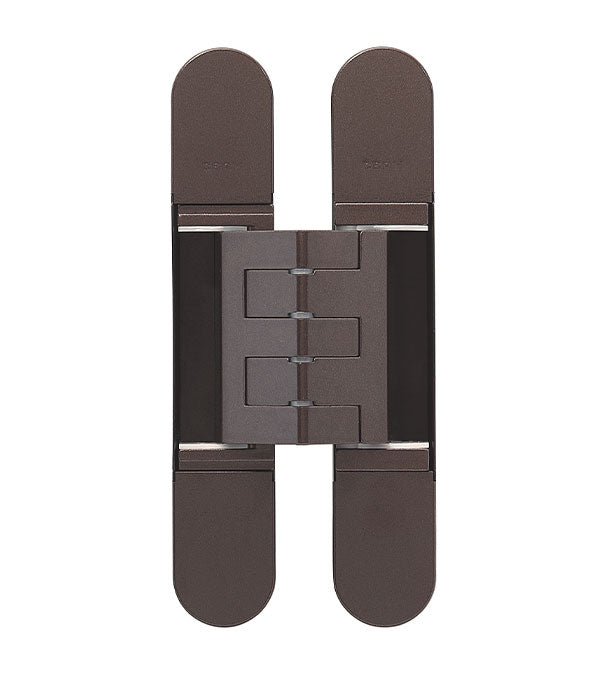

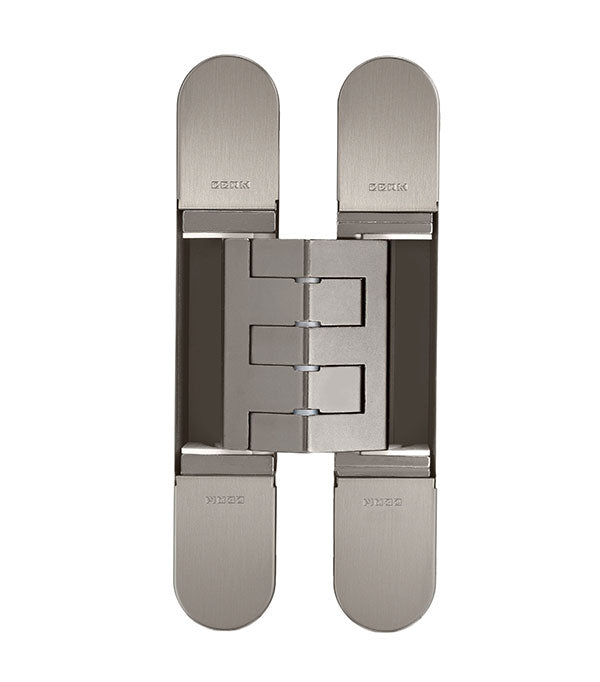

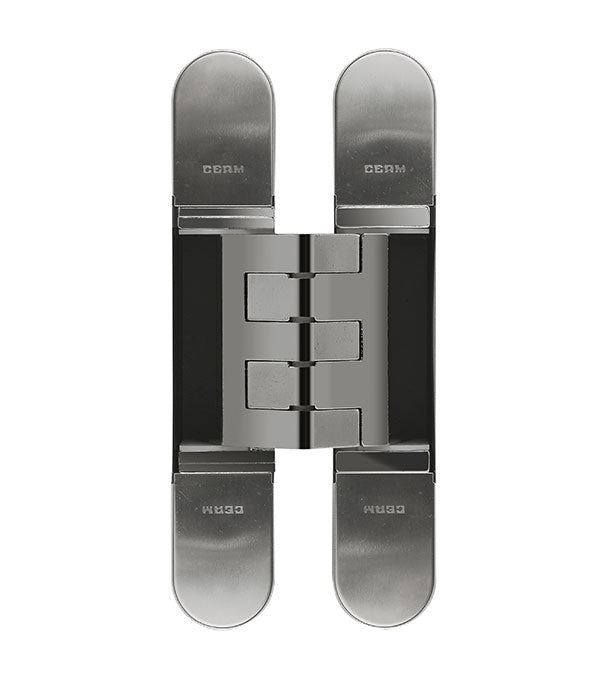

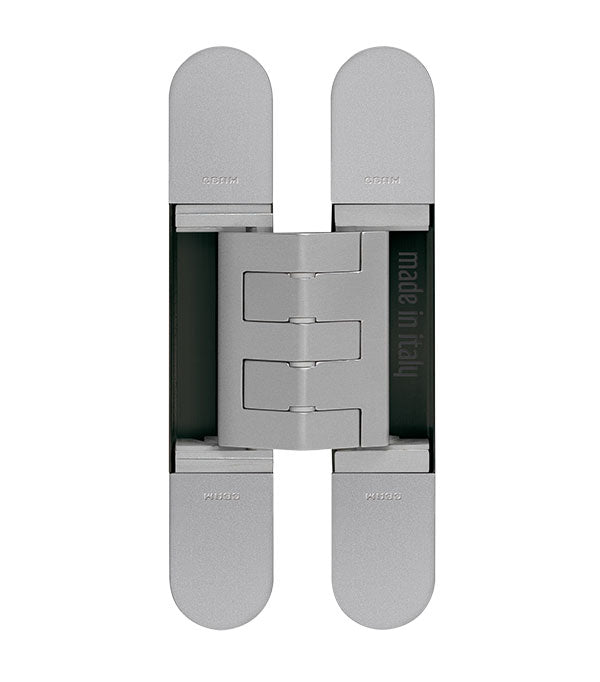

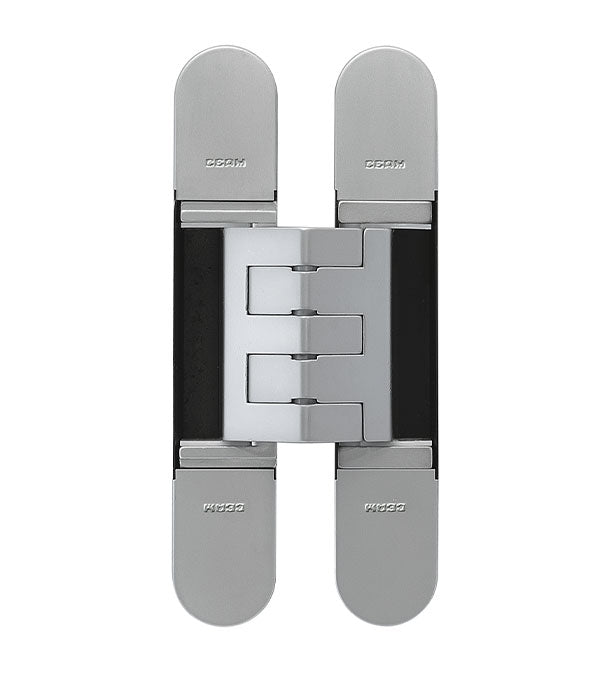

Article code format: CISC1431[finish]00 | 貨品編號格式：CISC1431[表面處理]00
