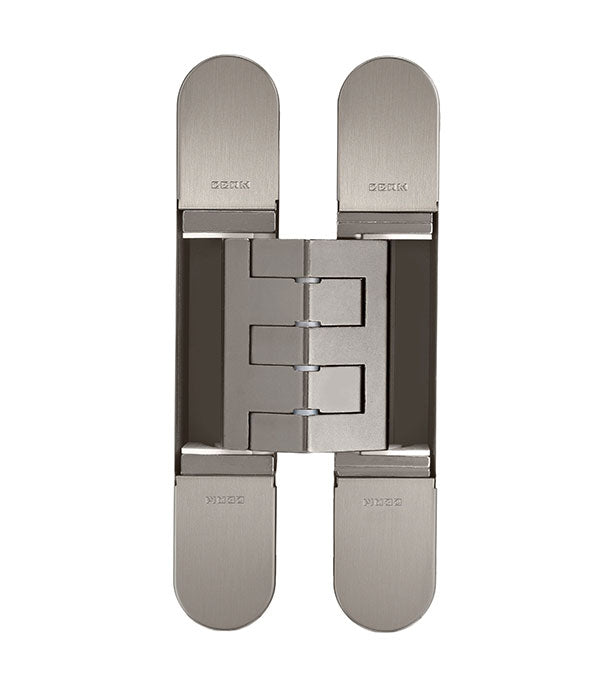

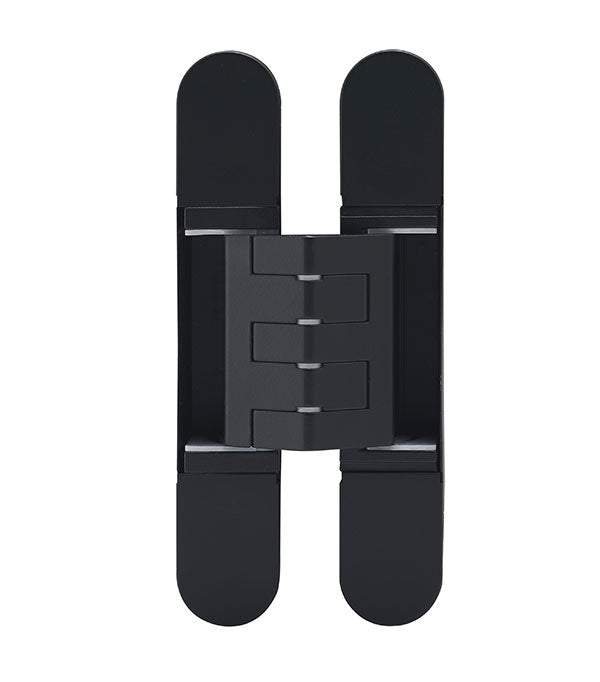

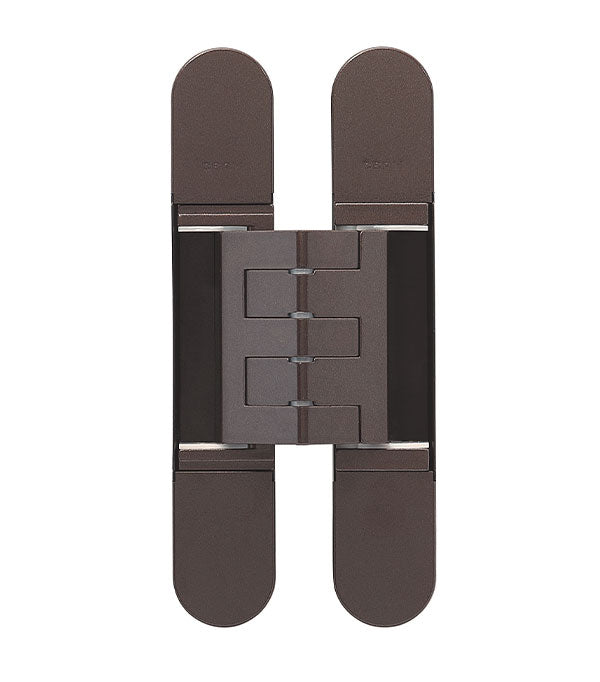

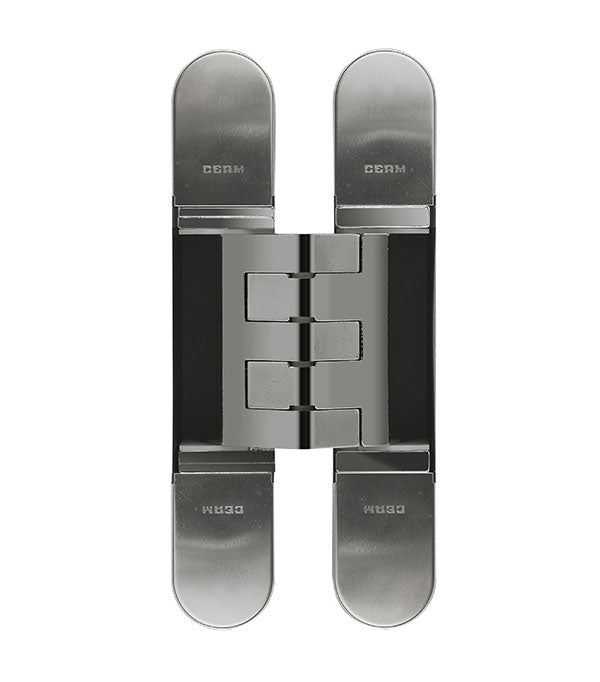

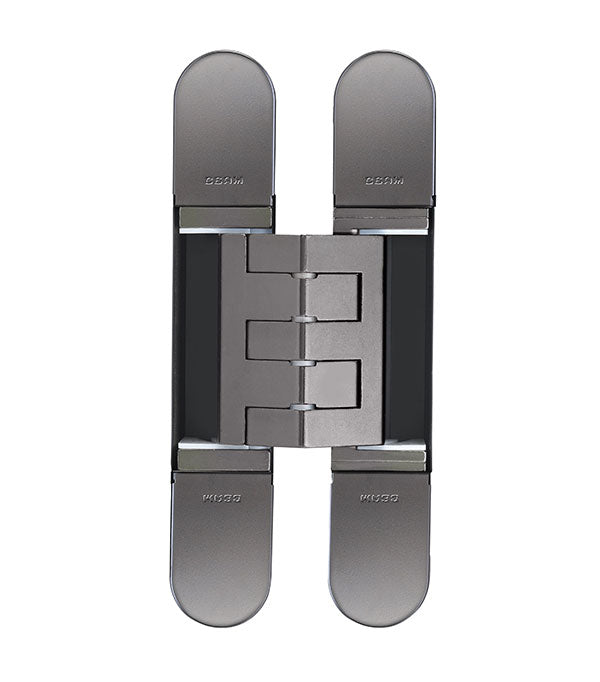

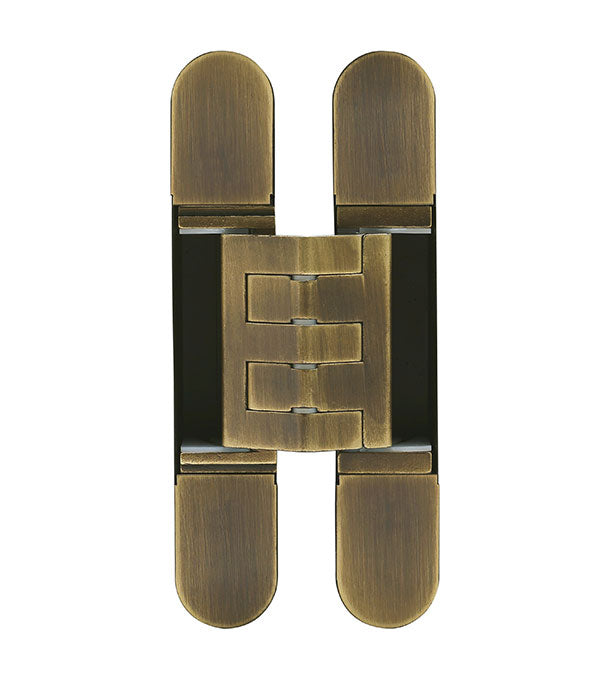

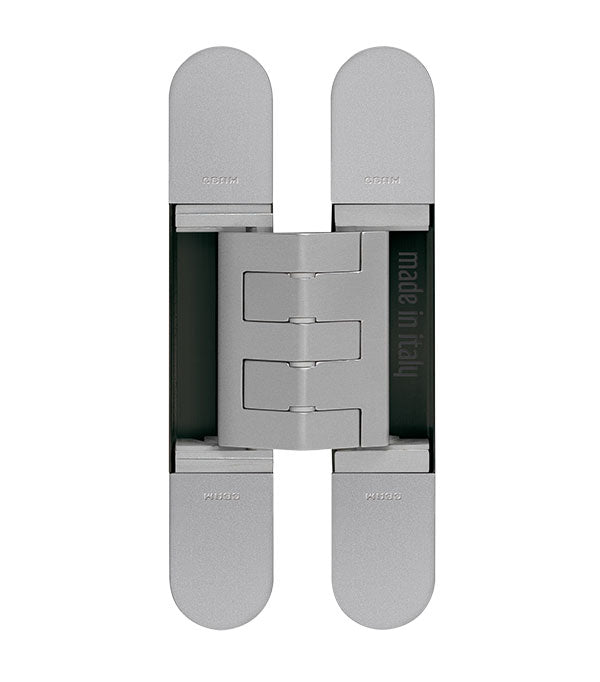

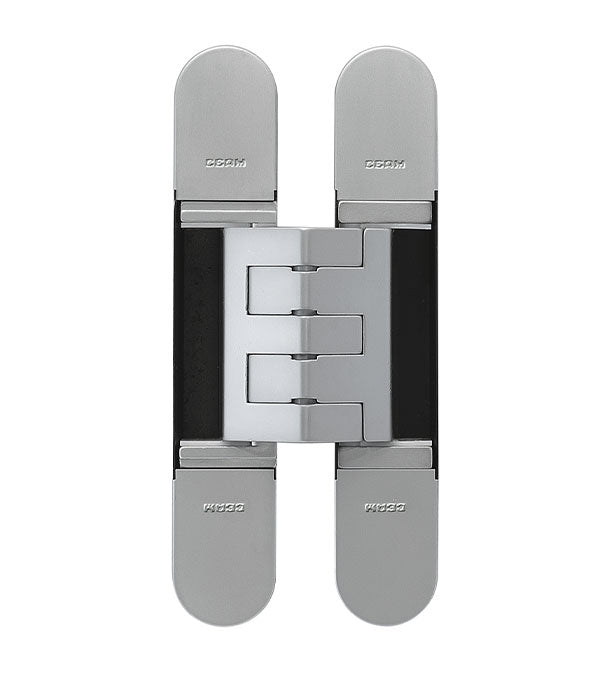

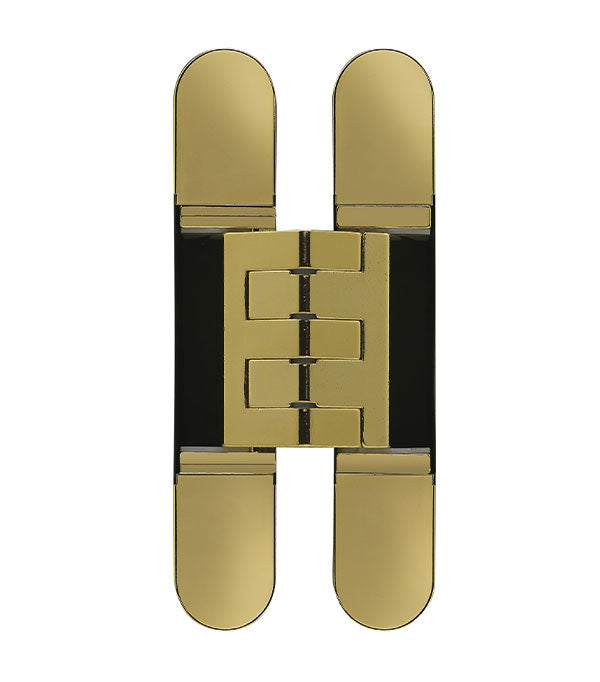

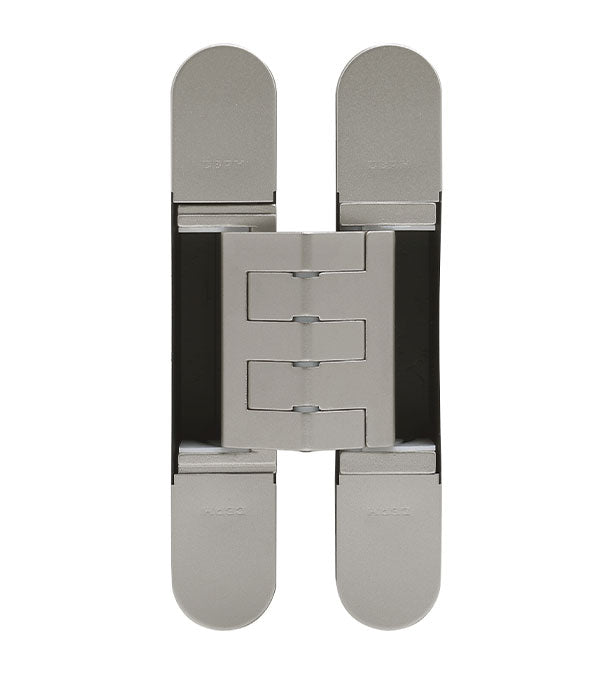

CEAM Concealed Hinge 140kg | CEAM 隱藏式鉸鏈 140kg

CEAM Concealed Hinge 140kg | CEAM 隱藏式鉸鏈 140kg

存貨單位 (SKU):HKH-288G

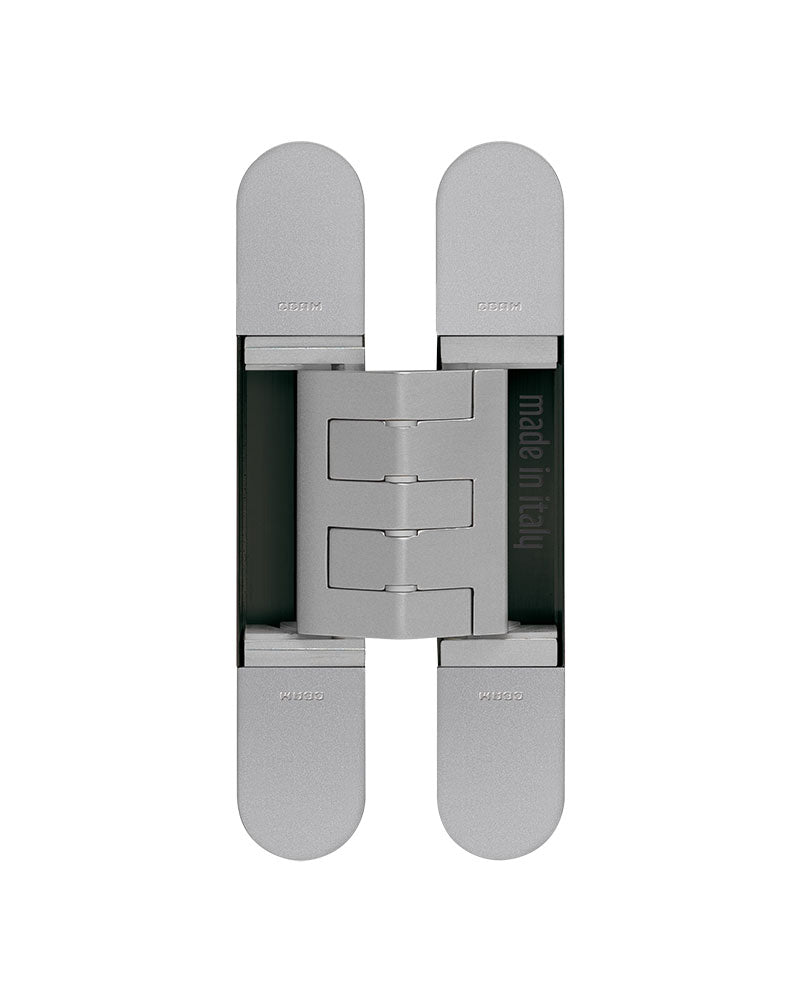

NEW 1431: SOLIDITY MEETS ELEGANCE


Totally reversible and symmetrical, 1431 become a benchmark in the market of entrance doors for prestigious hotels, which are often equipped with door closer mechanisms. Thanks to the high capacity of the hinge, the seal is guaranteed even on very heavy doors

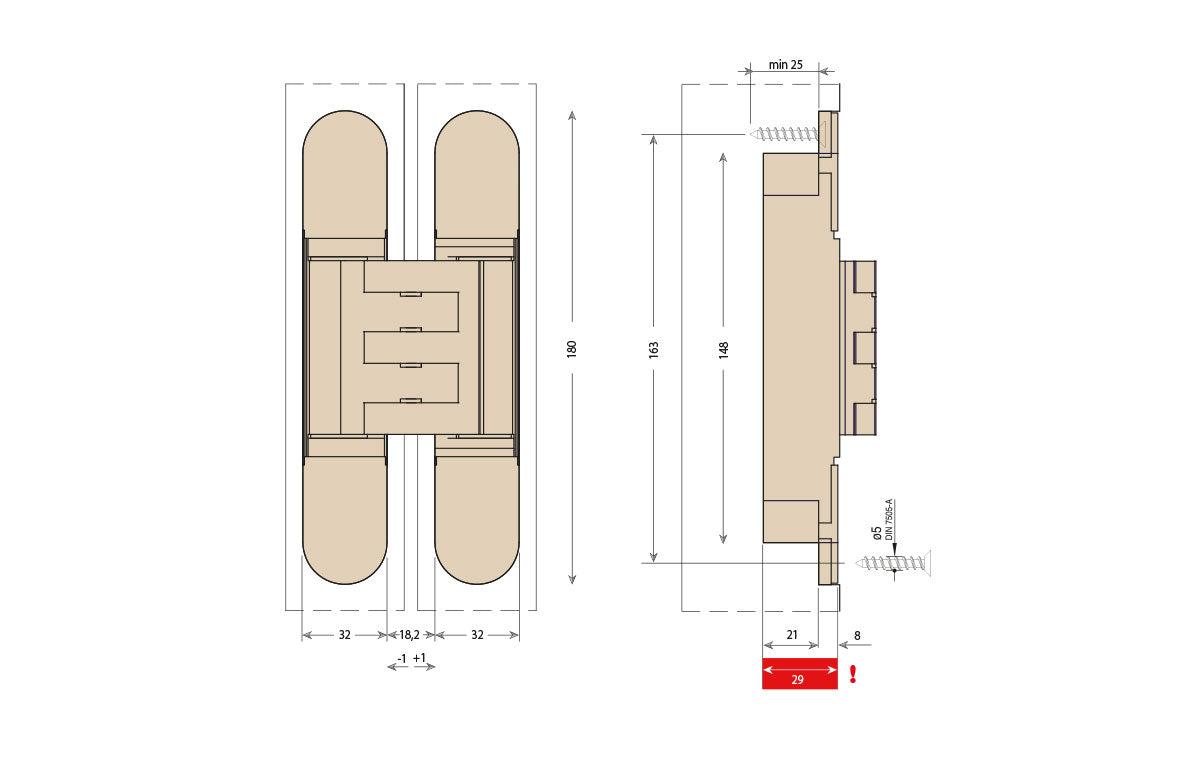

Height: 180 mm

Width: 32 mm

Depth: 29 mm

Suitable for doors: Wood, Alluminium, Steel

Minimum door thickness: 38 mm

Fire resistance: EI60, EI90

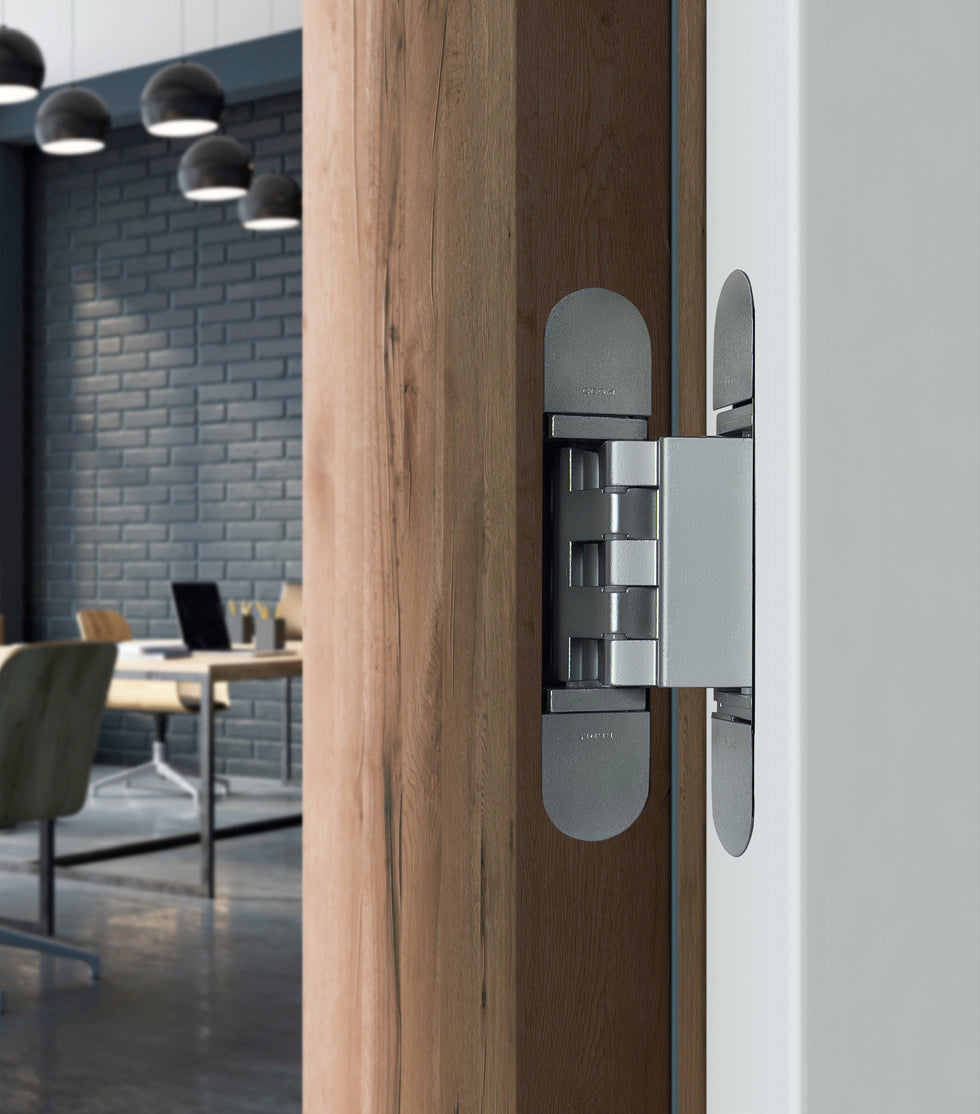

Utilization: Residential, Commercial, Office, Entrance door, Marine use



Load capacity 2 hinges: 120 kg

Load capacity 3 hinges: 135 kg

For special door sizes and use of door closer devices, please read carefully the technical guidelines.
